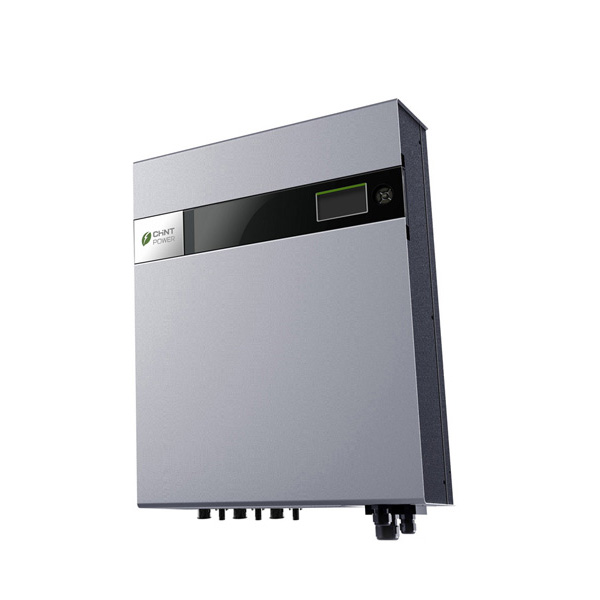

CPS SC10kW
CPS SC series grid-tied PV inverters can be flexibly utilized in different types of residential rooftops, commercial rooftops and some utility systems. Efficiency levels up to 96.5% grant customers high returns of power production.
Convection cooling design (except SC10KTL-O), comprehensive protection functions and advanced thermal design provide the whole system high reliability. The friendly interface and plug & play features make the installation and maintenance easy and fast.
Related products
CPS SC100kWUS
The CPS SC100KT-O/US-480 grid-tied PV inverter is designed for the North America market. The output is designed with a built-in transformer to allow direct connection to low voltage grid. The inverter achieves a 96.8% max efficiency with low loss magnetic materials, advanced MPPT control and variable structure SVPWM controls to minimize the power loss.
The inverter enclosure is rated NEMA 3R for outdoor applications and its compact design minimizes the space required for installation. It also features film-type capacitors, enhanced DSP control, comprehensive protection functions and advance thermal design to make the whole system highly reliable.
CPS SC20kWUS
The CPS SC20KTL-DO/US-480 grid-tied PV inverter is a tranformerless, three phase product designed for the North America market in compliance with UL and CSA standards. Patented 3-level control algorithm and thermal design provide 97.3% maximum efficiency. CPS SC20KTL-DO/US-480 features small size, light weight and high power density. Multi flexible mounting modes make installation and maintenance easy and quick. The enclosure of the inverter is rated NEMA 3R (IP65) for general purpose outdoor applications. Enhanced DSP control, comprehensive protection functions and advanced thermal design enable a high reliability product with optional warranties up to 20 years.
NXB-63H Miniature Circuit Breaker
Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A,;
Rated voltage: 240V ~ (1P, 1P+N), 415V ~ (2 ~ 4P, 3P+N);
Frequency: 50Hz;
Electromagnetic release type: B, C, D;
Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P;
Mechanical life: 20000 cycles;
Electrical life: 10000 cycles;
Rated short-circuit breaking capacity: 10000A;
Short-circuit breaking capacity: 7500A;
Rated impulse withstand voltage: 4kV;
CATALOG
NXB-63H Miniature circuit breaker PDF
Growatt SPF 5000ES
5Kw Growatt SPF 5000 ES off-grid is off-grid inverter to backup power and self-consumption application, maximum power PV input voltage up to 450VDC, also it can work without battery indirect savings in investment costs.
| Rated Power: | 5000VA/ 5000W |
| Parallel Capability: | Yes, 6 units |
| Maximum PV Array Power: | 5500W |
| Maximum PV Array Open Circuit Voltage: | 450VDC |
| Battery voltage: | 48VDC |
NXB-125 Moulded Case Circuit Breaker
Rated current: 63A, 80A, 100A, 125A;
Rated voltage: 240V ~ (1P), 415V ~ (2P, 3P, 4P);
Frequency: 50Hz;
Electromagnetic release type: C, D;
Number of poles: 1P, 2P, 3P, 4P;
Mechanical life: 20000 cycles;
Electrical life: 6000 cycles (In≤100A); 4000 cycles (In＞100A);
Rated short-circuit breaking capacity(Icu): 10000A;
Short-circuit breaking capacity(Ics): 7500A;
Rated impulse withstand voltage(Uimp): 4kV;
CATALOG
NXB-125 Moulded Case Circuit Breaker PDF
NBH8 Miniature Circuit Breaker
1.1 Function
protection of circuits against short-circuit currents,protection of circuits against overload currents,switch,isolation.
1.2 Selection
Technical data of the network at the point considered:the earthing systems (TNS, TNC),
short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,network normal voltage.
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curve (5-10In)
protection for resistive and inductive loads with low inrush current.
1.3 Approvals and certificates
CATALOG
NBH8 Miniature Circuit Breaker PDF
CPS SCA8-12kW Series
This inverter series is suitable for a variety of applications, from large residential to commercial rooftops and utility scale PV systems. With the features of concise design and high reliability of the former generation, these inverters offer an improved performance on the conversion efficiency of reaching up to 98.3%. The internal DC switch further improves the safety and reliability of the products.
NB1-63DC DC Miniature Circuit Breaker
1.1 Certificates: CCC,CE,CB,TUV;
1.2 Standard: IEC/EN 60947-2 ,RoHS;
1.3 Rated voltage up to 1000V, Rated current up to 63A;
1.4 Protection of circuits against overload currents;
1.5 Protection of circuits against short-circuit currents;
1.6 NB1-63 DC circuit-breakers are used incommunication systems and PV DC systems.
