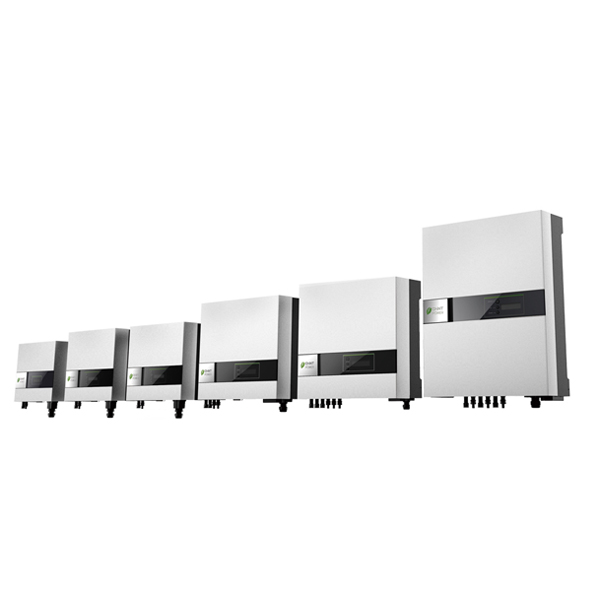

CPS SC1.5-4.6kW Series
CPS SC series grid-tied PV inverters can be flexibly utilized in different types of residential rooftops, commercial rooftops and some utility systems. Efficiency levels up to 96.5% grant customers high returns of power production.
Convection cooling design, comprehensive protection functions and advanced thermal design provide the whole system high reliability. The friendly interface and plug & play features make the installation and maintenance easy and fast.
Related products
CPS SCA8-12kW Series
This inverter series is suitable for a variety of applications, from large residential to commercial rooftops and utility scale PV systems. With the features of concise design and high reliability of the former generation, these inverters offer an improved performance on the conversion efficiency of reaching up to 98.3%. The internal DC switch further improves the safety and reliability of the products.
Growatt SPF3000TL-24
The Growatt SPF 3000-5000TL HVM series, ideal for Off-Grid Solar, or Grid Connected applications with full system monitoring.
Features:
- Integrated MPPT charge controller
- Configurable grid or solar input priority
- Optional WIFI/ GPRS remote monitoring
- Parallel for scalability
- AC input available
NBH8 Miniature Circuit Breaker
1.1 Function
protection of circuits against short-circuit currents,protection of circuits against overload currents,switch,isolation.
1.2 Selection
Technical data of the network at the point considered:the earthing systems (TNS, TNC),
short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,network normal voltage.
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curve (5-10In)
protection for resistive and inductive loads with low inrush current.
1.3 Approvals and certificates
CATALOG
NBH8 Miniature Circuit Breaker PDF
NXB-125 Moulded Case Circuit Breaker
Rated current: 63A, 80A, 100A, 125A;
Rated voltage: 240V ~ (1P), 415V ~ (2P, 3P, 4P);
Frequency: 50Hz;
Electromagnetic release type: C, D;
Number of poles: 1P, 2P, 3P, 4P;
Mechanical life: 20000 cycles;
Electrical life: 6000 cycles (In≤100A); 4000 cycles (In＞100A);
Rated short-circuit breaking capacity(Icu): 10000A;
Short-circuit breaking capacity(Ics): 7500A;
Rated impulse withstand voltage(Uimp): 4kV;
CATALOG
NXB-125 Moulded Case Circuit Breaker PDF
NXB-63 Miniature Circuit Breaker
Overload protection, short circuit protection and isolation. It is widely used in building power distribution, industrial power distribution, as well as control and protection for a variety of equipment with operating current not exceeding 125A.
CATALOGUE: NXB-63 Miniature circuit breaker PDF
CPS SC20kW
The CPS SC20KTL-DO grid-tied PV inverter is designed for flexible use in different types of commercial rooftops and utility applications. 3-level technology, parallel switched MOSFET with IGBT and bypass strategy minimize power loss to achieve high efficiency at all load levels.
CPS SC20KTL-DO features small size, light weight and high power density. Flexible mounting modes make installation and maintenance easy and quick. IP65 protection degree allows versatile outdoor applications to save indoor installation space and cables. Enhanced DSP control, comprehensive protection functions and advanced thermal design enable the whole system with high reliability.
NB1-63G Miniature Circuit Breaker
1.1 Function
protection of circuits against short-circuit currentsprotection of circuits against overload currents,switch,isolation,
NB1-63G circuit-breakers are used in domestic installation,as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point consideredshort-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,
Network normal voltage.
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curve (5-10In)
protection for resistive and inductive loads with low inrus current.
CATALOG
NB1-63G Miniature Circuit Breaker PDF
CPS SC20kWUS
The CPS SC20KTL-DO/US-480 grid-tied PV inverter is a tranformerless, three phase product designed for the North America market in compliance with UL and CSA standards. Patented 3-level control algorithm and thermal design provide 97.3% maximum efficiency. CPS SC20KTL-DO/US-480 features small size, light weight and high power density. Multi flexible mounting modes make installation and maintenance easy and quick. The enclosure of the inverter is rated NEMA 3R (IP65) for general purpose outdoor applications. Enhanced DSP control, comprehensive protection functions and advanced thermal design enable a high reliability product with optional warranties up to 20 years.
