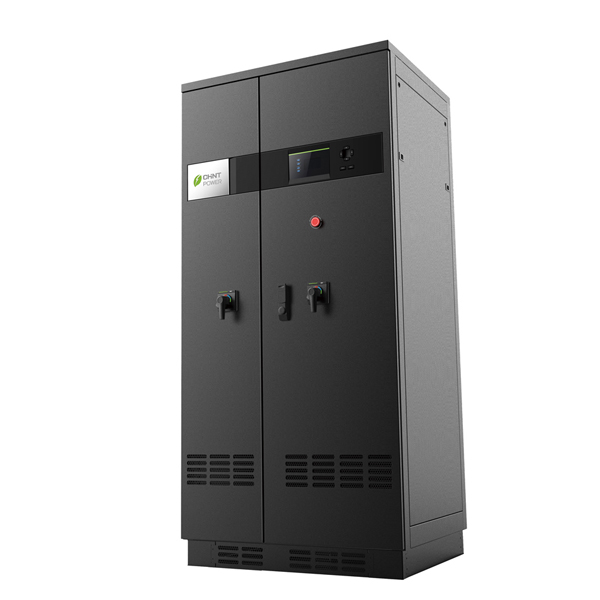

CPS SC100kW
The CPS SC100KT grid-tied PV inverter is designed for flexible use in different types of commercial rooftops and unility. It features isolation output transformer, low loss magnetic materials, advanced MPPT control and variable structure SVPWM control to minimize power loss and achieve high efficiency at all load levels. Enhanced DSP control, comprehensive protection functions and advanced thermal design enable the whole system with high reliability.
