CPS SC100kWUS

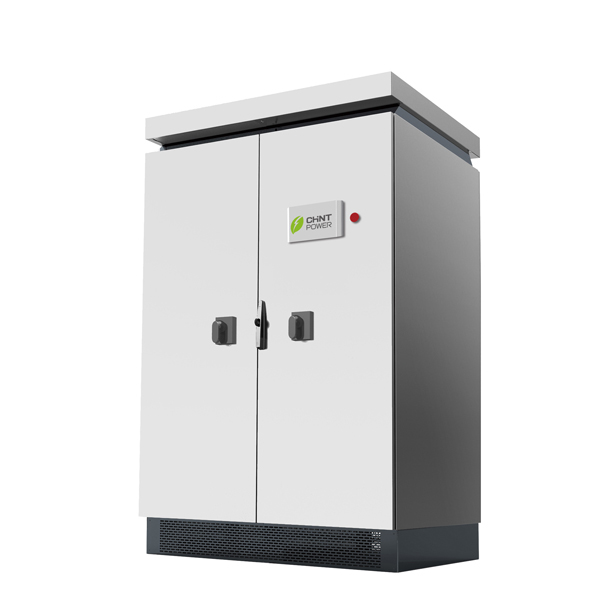

The CPS SC100KT-O/US-480 grid-tied PV inverter is designed for the North America market. The output is designed with a built-in transformer to allow direct connection to low voltage grid. The inverter achieves a 96.8% max efficiency with low loss magnetic materials, advanced MPPT control and variable structure SVPWM controls to minimize the power loss.
The inverter enclosure is rated NEMA 3R for outdoor applications and its compact design minimizes the space required for installation. It also features film-type capacitors, enhanced DSP control, comprehensive protection functions and advance thermal design to make the whole system highly reliable.
