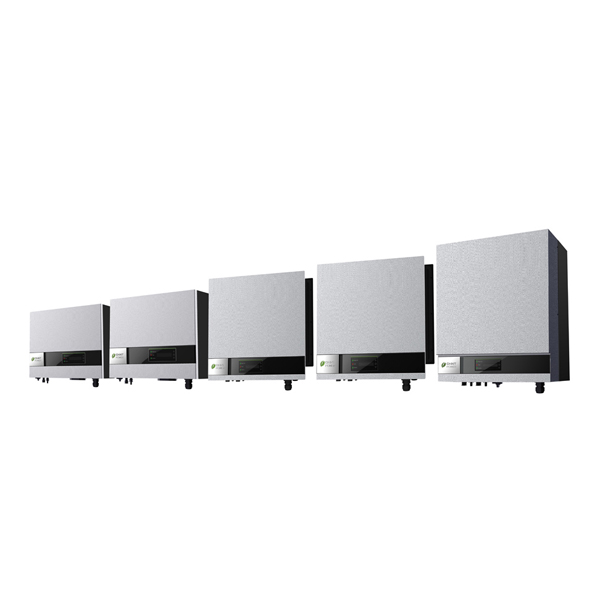

CPS SCE1.5-4.6kW Series
SCE series PV inverters are suitable for various residential and commercial rooftop PV systems. With the features of concise design and high reliability of the former generation, SCE series PV inverters offer an improved performance on the conversion efficiency reaching up to 97.5%. The internal design offering now standard embedded DC switch and RS485 communication making of the SCE series a safe and flexible product for customers.
Related products
Growatt SPF 5000ES
5Kw Growatt SPF 5000 ES off-grid is off-grid inverter to backup power and self-consumption application, maximum power PV input voltage up to 450VDC, also it can work without battery indirect savings in investment costs.
| Rated Power: | 5000VA/ 5000W |
| Parallel Capability: | Yes, 6 units |
| Maximum PV Array Power: | 5500W |
| Maximum PV Array Open Circuit Voltage: | 450VDC |
| Battery voltage: | 48VDC |
Growatt SPF3000TL-24
The Growatt SPF 3000-5000TL HVM series, ideal for Off-Grid Solar, or Grid Connected applications with full system monitoring.
Features:
- Integrated MPPT charge controller
- Configurable grid or solar input priority
- Optional WIFI/ GPRS remote monitoring
- Parallel for scalability
- AC input available
CPS SC20kW
The CPS SC20KTL-DO grid-tied PV inverter is designed for flexible use in different types of commercial rooftops and utility applications. 3-level technology, parallel switched MOSFET with IGBT and bypass strategy minimize power loss to achieve high efficiency at all load levels.
CPS SC20KTL-DO features small size, light weight and high power density. Flexible mounting modes make installation and maintenance easy and quick. IP65 protection degree allows versatile outdoor applications to save indoor installation space and cables. Enhanced DSP control, comprehensive protection functions and advanced thermal design enable the whole system with high reliability.
CPS SCA8-12kW Series
This inverter series is suitable for a variety of applications, from large residential to commercial rooftops and utility scale PV systems. With the features of concise design and high reliability of the former generation, these inverters offer an improved performance on the conversion efficiency of reaching up to 98.3%. The internal DC switch further improves the safety and reliability of the products.
NB1-63 Miniature Circuit Breaker
1.1 Function
protection of circuits against short-circuit currents,protection of circuits against overload currents,switch,isolation.
NB1 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,network normal voltage.
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curve (5-10In)
protection for resistive and inductive loads with low inrushcurrent.
D curve(10-14In)
protection for circuits which supply loads with high inrush current at the circuit closing
(LV/LV transformers, breakdown lamps).
1.3 Approvals and certificates
Detailed information, please refer to Certificates Table on the last page.
3KW 48V Growatt Hybrid
|
3KW 48V Growatt HVM series hybrid off-grid solar Inverter is integrated with a 40A MPPT solar charge controller, Transformer less design provides reliable power. The Growatt inverters are perfect backup power for your home, home office or small business. |
| Rated Power: | 3000W |
| Battery Voltage: | 48VDC |
| Solar Charge Current: | 40A |
| Maximum PV Array Power: | 2400W |
| Charge Current: | 15A |
NXB-63H Miniature Circuit Breaker
Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A,;
Rated voltage: 240V ~ (1P, 1P+N), 415V ~ (2 ~ 4P, 3P+N);
Frequency: 50Hz;
Electromagnetic release type: B, C, D;
Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P;
Mechanical life: 20000 cycles;
Electrical life: 10000 cycles;
Rated short-circuit breaking capacity: 10000A;
Short-circuit breaking capacity: 7500A;
Rated impulse withstand voltage: 4kV;
CATALOG
NXB-63H Miniature circuit breaker PDF
