CPS SC20kW

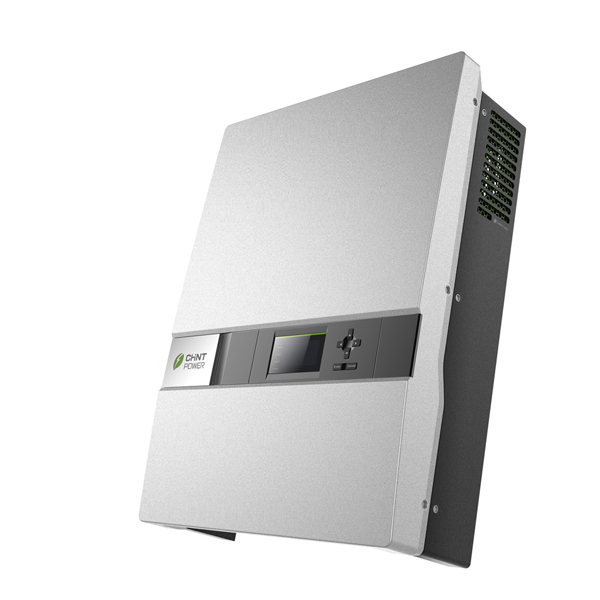

The CPS SC20KTL-DO grid-tied PV inverter is designed for flexible use in different types of commercial rooftops and utility applications. 3-level technology, parallel switched MOSFET with IGBT and bypass strategy minimize power loss to achieve high efficiency at all load levels.
CPS SC20KTL-DO features small size, light weight and high power density. Flexible mounting modes make installation and maintenance easy and quick. IP65 protection degree allows versatile outdoor applications to save indoor installation space and cables. Enhanced DSP control, comprehensive protection functions and advanced thermal design enable the whole system with high reliability.
Related products
NXB-63H Miniature Circuit Breaker
Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A,;
Rated voltage: 240V ~ (1P, 1P+N), 415V ~ (2 ~ 4P, 3P+N);
Frequency: 50Hz;
Electromagnetic release type: B, C, D;
Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P;
Mechanical life: 20000 cycles;
Electrical life: 10000 cycles;
Rated short-circuit breaking capacity: 10000A;
Short-circuit breaking capacity: 7500A;
Rated impulse withstand voltage: 4kV;
CATALOG
NXB-63H Miniature circuit breaker PDF
NB1-63 Miniature Circuit Breaker
1.1 Function
protection of circuits against short-circuit currents,protection of circuits against overload currents,switch,isolation.
NB1 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,network normal voltage.
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curve (5-10In)
protection for resistive and inductive loads with low inrushcurrent.
D curve(10-14In)
protection for circuits which supply loads with high inrush current at the circuit closing
(LV/LV transformers, breakdown lamps).
1.3 Approvals and certificates
Detailed information, please refer to Certificates Table on the last page.
NB1-63DC DC Miniature Circuit Breaker
1.1 Certificates: CCC,CE,CB,TUV;
1.2 Standard: IEC/EN 60947-2 ,RoHS;
1.3 Rated voltage up to 1000V, Rated current up to 63A;
1.4 Protection of circuits against overload currents;
1.5 Protection of circuits against short-circuit currents;
1.6 NB1-63 DC circuit-breakers are used incommunication systems and PV DC systems.
CPS SCE4-7kWUS Series
With advanced transformerless technology, the products reach a 97.5% maximum efficiency, providing competitive, long-term electricy generation benefits.
The enclosures are NEMA 3R rated for general outdoor application. Designed for high reliability and easy installation, CPS SCE series are the ideal choice for residential rooftop applications.
Growatt SPF 5000ES
5Kw Growatt SPF 5000 ES off-grid is off-grid inverter to backup power and self-consumption application, maximum power PV input voltage up to 450VDC, also it can work without battery indirect savings in investment costs.
| Rated Power: | 5000VA/ 5000W |
| Parallel Capability: | Yes, 6 units |
| Maximum PV Array Power: | 5500W |
| Maximum PV Array Open Circuit Voltage: | 450VDC |
| Battery voltage: | 48VDC |
CPS SC1.5-4.6kW Series
CPS SC series grid-tied PV inverters can be flexibly utilized in different types of residential rooftops, commercial rooftops and some utility systems. Efficiency levels up to 96.5% grant customers high returns of power production.
Convection cooling design, comprehensive protection functions and advanced thermal design provide the whole system high reliability. The friendly interface and plug & play features make the installation and maintenance easy and fast.
CPS SC100kWUS
The CPS SC100KT-O/US-480 grid-tied PV inverter is designed for the North America market. The output is designed with a built-in transformer to allow direct connection to low voltage grid. The inverter achieves a 96.8% max efficiency with low loss magnetic materials, advanced MPPT control and variable structure SVPWM controls to minimize the power loss.
The inverter enclosure is rated NEMA 3R for outdoor applications and its compact design minimizes the space required for installation. It also features film-type capacitors, enhanced DSP control, comprehensive protection functions and advance thermal design to make the whole system highly reliable.
