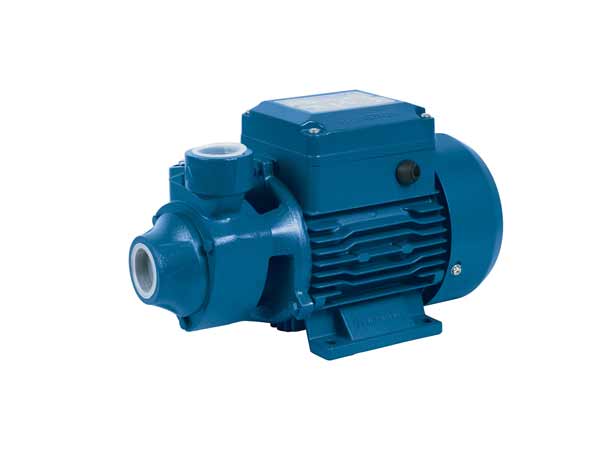

EQ Peripheral Pumps

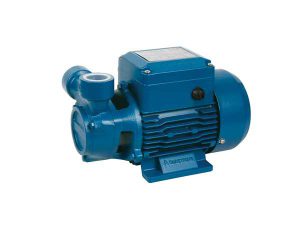

EK Peripheral Pumps

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
Add to wishlist
Compare
Add to quote
SKU: AQU2389 Categories: , Tags: ,
Description

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.Thanks to their reliability, the fact that they are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

Pump                                                                Motor
·Brass impeller                                              ·Copper winding
·Anti-block system                                        ·Built-in thermal protector for single phase motor
·Electrophoresis for cast iron parts           ·Insulation class:F
·Stainless Steel fabricated shaft                 ·Protection class:IPX4
·Max.liquid temperature: +40℃                 ·Max.ambient temperature:+40℃
·Max.Suction:+8m

Model

ek-descriptions
