Horizontal Multi-Stage Centrifugal Pump

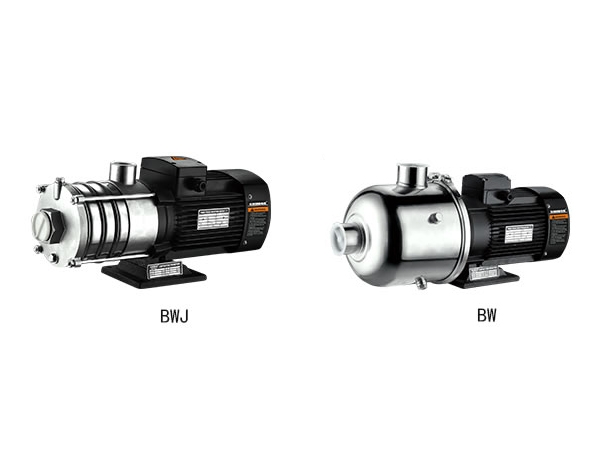

BW, BWJ(T) stainless steel horizontal multistage centrifugal pumps are non-self priming pumps used for transporting liquid. They are classified into two kinds: cylinder type and sectional type. They adopt horizontal motor and alloy mechanical seal, which makes the replacement more convenient. The overflowing part of the horizontal process pump is made of stainless steel 304, applicable for light-corrosion medium. Relying on the high efficiency, energy saving performance, reliable quality, wide usable range, our products receive the great popularity after being launched.

Add to wishlist
Compare
Add to quote
SKU: PUM8869 Categories: , , , Tags: , ,
Description
Application Limits of Horizontal Centrifugal Pump
1. Temperature range of medium: Normal type 0~+68℃, hot water type 0~+120℃
2. Maximum ambient temperature: +40 ℃
3. Maximum working pressure: 10 bar
4. When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
5. pH: 6.5 to 8.5
Application Fields of Horizontal Centrifugal Pump

1. Air conditioner system
2. Aquaculture
3. Cooling System
4. Industrial cleansing
5. Environmental application
6. Water processing(Water purification)
7. Fertilization/measuring system
8. Other special applications
Certificate

Optional Available on Request

1. Full-enclosed and ventilating two-pole standard motor
2. Protection class: IP55
3. Insulation class: F
4. Standard voltage (50Hz): Single phase 220V
Three phase: 380V or 220V

Optional Available on Request

Performance Curve

Performance Curve
