Performance Curve

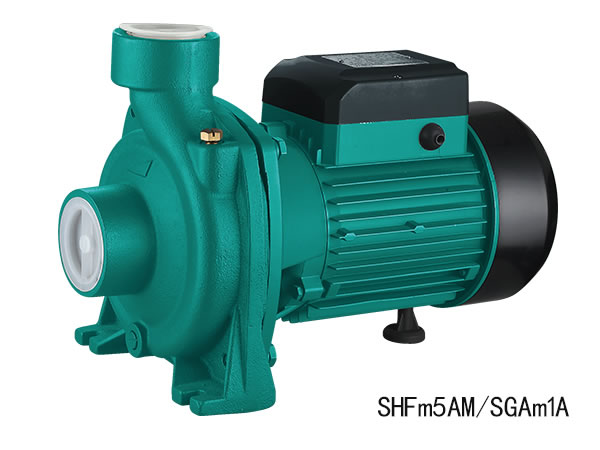

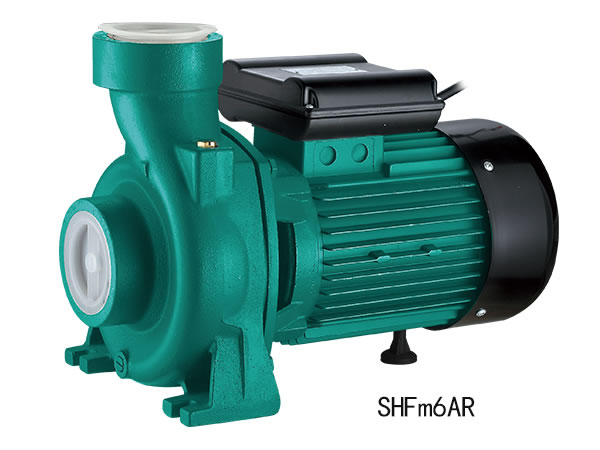

SHF(m) Centrifugal Pump
Performance Range
1. Max. Flow: 129m3/h
2. Max. Head: 22.5m
Application Limits
1. Suction head up to 7m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 3bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in farm irrigation, garden irrigation, breeding industry water supply and drainage, etc.
Features
1. Large flow, high efficiency
2. Compact structure, easy to install
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Mechanical seal: Ceramic/Graphite/NBR rubber
4. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
5. Protection: IP44
6. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
