2SGP(m) Centrifugal Pump
Performance Range
1. Max. Flow: 12m3/h
2. Max. Head: 50m
Application Limits
1. Suction head up to 8m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 5bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate: CE
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
Features
1. Double impeller centrifugal pump, satisfies the requirement of high head.
2. Compact structure
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Mechanical seal: Ceramic / Graphite / NBR rubber
4. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
5. Protection: IP44
6. Insulation: Class B
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
Features
1. Double impeller centrifugal pump, satisfies the requirement of high head.
2. Compact structure
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Mechanical seal: Ceramic / Graphite / NBR rubber
4. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
5. Protection: IP44
6. Insulation: Class B
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F

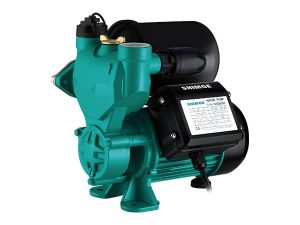

AWZB Automatic Self-Priming Peripheral Pump
Performance Range
1. Max. Flow: 4.8m3/h
2. Max. Head: 50m
Application Limits
1. Suction head up to 8m
2. Liquid temperature up to +90℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 5bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, water tower water supply, automatic irrigation system, well water lifting, various corollary equipment, etc.
Features
1. Automatic self-priming pump
2. Bulit-in check valve
3. Stainless steel 304 inserts
Motor
1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic/Graphite/EPDM rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, water tower water supply, automatic irrigation system, well water lifting, various corollary equipment, etc.
Features
1. Automatic self-priming pump
2. Bulit-in check valve
3. Stainless steel 304 inserts
Motor
1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic/Graphite/EPDM rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
AWZB-H1 Automatic Self-Priming Peripheral Pump
Performance Range
1. Max. Flow: 3.6m3/h
2. Max. Head: 44m
Application Limits
1. Suction head up to 8m
2. Liquid temperature up to +90℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 5bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, tap-water boosting, water tower water supply, well water lifting, solar boosting, hot water pipe boosting, etc.
Features
1. Automatic self-priming pump
2. Bulit-in check valve
3. Stainless steel 304 inserts
Motor
1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic / Graphite / EPDM rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, tap-water boosting, water tower water supply, well water lifting, solar boosting, hot water pipe boosting, etc.
Features
1. Automatic self-priming pump
2. Bulit-in check valve
3. Stainless steel 304 inserts
Motor
1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic / Graphite / EPDM rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F
Cpm Centrifugal Pump
Performance Range
1. Max. Flow: 8.4m3/h
2. Max. Head: 59m
Application Limits
1. Suction head up to 7m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in vegetable greenhouse water supply, breeding industry water supply and drainage, water tower water supply, pipeline pressurization, various corollary equipment, etc.
Features
1. Single suction centrifugal pump, with high efficiency
2. Copper impeller, stable performance
3. High head, small flow rate
Motor
1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic/Graphite/NBR rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in vegetable greenhouse water supply, breeding industry water supply and drainage, water tower water supply, pipeline pressurization, various corollary equipment, etc.
Features
1. Single suction centrifugal pump, with high efficiency
2. Copper impeller, stable performance
3. High head, small flow rate
Motor
1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic/Graphite/NBR rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
JET Self-Priming Jet Pump
Performance Range
1. Max. Flow: 6m3/h
2. Max. Head: 80m
Application Limits
1. Suction head up to 9m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 5bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, water tower water supply, well water lifting, automatic irrigation system, various corollary equipment, etc.
Features
1. The JET type self-priming pump
2. High suction, with short time
3. Different impeller material configuration
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in living water supply, water tower water supply, well water lifting, automatic irrigation system, various corollary equipment, etc.
Features
1. The JET type self-priming pump
2. High suction, with short time
3. Different impeller material configuration
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
JET-G1 Self-Priming Jet Pump
Performance Range
1. Max. Flow: 6m3/h
2. Max. Head: 48m
Application Limits
1. Suction head up to 9m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
1. 304 stainless steel pressed tensile pump body & pump cover
2. Hydraulic optimization design, excellent performance
3. Nozzle, guide vane and the impeller PPO engineering plastics
4. Products are complete in specifications, meet drinking water standards
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F
3. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
1. 304 stainless steel pressed tensile pump body & pump cover
2. Hydraulic optimization design, excellent performance
3. Nozzle, guide vane and the impeller PPO engineering plastics
4. Products are complete in specifications, meet drinking water standards
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F
3. Other voltage or frequency is 60Hz
PUM Centrifugal Pump
Performance Range
1. Max. Flow: 7.2m3/h
2. Max. Head: 27m
Application Limits
1. Suction head up to 8m
2. Liquid temperature up to +90℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 3bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in solar boosting, water heater boosting, air energy boosting, various corollary equipment, etc.
Features
1. Stainless steel impeller, shaft 304
2. Specially designed for view of the hot water circulation
3. High quality mechanical seal, NSK bearing, improve the reliability of the product
Motor
1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: F
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F
3. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in solar boosting, water heater boosting, air energy boosting, various corollary equipment, etc.
Features
1. Stainless steel impeller, shaft 304
2. Specially designed for view of the hot water circulation
3. High quality mechanical seal, NSK bearing, improve the reliability of the product
Motor
1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: F
Optional Available on Request
1. NSK bearing
2. Motor whose insulation class is F
3. Other voltage or frequency is 60Hz
PW-Z Self-Priming Peripheral Pump
Applications Fields
1. The self-priming peripheral pump is suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. It’s widely used in household water supply, well water pumping, tap water pressure, water tower's supply, solar or hot water systems pressure, etc.
Operating condition
1. Suction lift up to 8m
2. Liquid temperature ≤+90℃
3. Environment temperature ≤ +40℃
4. Max. working pressure: 5bar
Features and advantages
A self-priming peripheral pump for both hot and cold water.
Advanced structure with lower noise.
Intelligent control by both flow sensor and pressure sensor, which is convenient.
Materials
1. Pump body: Cast iron with stainless steel insert
2. Motor casing: Aluminum
3. Impeller: Brass
4. Shaft: Welded by SUS304 and Cs45#
5. Mechanical seal: Ceramic/Graphite/NBR
6. Copper winding
QB Peripheral Pump
Performance Range
1. Max. Flow: 3.6m3/h
2. Max. Head: 60m
Application Limits
1. Suction head up to 8m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
Features
1. Small size, high pressure
2. Easy installation & maintain
Motor
1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B
Optional Available On Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. Stainless steel insert
4. NSK bearing
5. Motor whose insulation class is F
6. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
Features
1. Small size, high pressure
2. Easy installation & maintain
Motor
1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B
Optional Available On Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. Stainless steel insert
4. NSK bearing
5. Motor whose insulation class is F
6. Other voltage or frequency is 60Hz
SGJW Self-Priming JET Pump
Performance Range
1. Max. Flow: 5.4m3/h
2. Max. Head: 52m
Application Limits
1. Suction head up to 9m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% f rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
1. Complete models
2. Copper impeller, stainless steel pump cover
3. Pump body with installation foot set
Motor
1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B
Optional Available On Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
1. Complete models
2. Copper impeller, stainless steel pump cover
3. Pump body with installation foot set
Motor
1. Single-Phase 220V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B
Optional Available On Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
SGT Centrifugal Pump
Performance Range
1. Max. Flow: 39m3/h
2. Max. Head: 52m
Application Limits
1. Suction head up to 8m
2. Liquid temperature up to +60℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in industrial and urban water supply, high-rise building boosting, fire protection system, breeding
Features
1. Standard flange centrifugal pump
2. Large flow, high efficiency
Motor
1. Three-Phase 380V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B
Optional Available on Request
1. Motor whose insulation class is F
2. NSK bearing
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in industrial and urban water supply, high-rise building boosting, fire protection system, breeding
Features
1. Standard flange centrifugal pump
2. Large flow, high efficiency
Motor
1. Three-Phase 380V/50Hz
2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
3. Protection: IP44
4. Insulation: Class B
Optional Available on Request
1. Motor whose insulation class is F
2. NSK bearing
SHF(m) Centrifugal Pump
Performance Range
1. Max. Flow: 129m3/h
2. Max. Head: 22.5m
Application Limits
1. Suction head up to 7m
2. Liquid temperature up to +40℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 3bar
5. Voltage fluctuation should not exceed 10% of rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in farm irrigation, garden irrigation, breeding industry water supply and drainage, etc.
Features
1. Large flow, high efficiency
2. Compact structure, easy to install
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Mechanical seal: Ceramic/Graphite/NBR rubber
4. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
5. Protection: IP44
6. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in farm irrigation, garden irrigation, breeding industry water supply and drainage, etc.
Features
1. Large flow, high efficiency
2. Compact structure, easy to install
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Mechanical seal: Ceramic/Graphite/NBR rubber
4. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
5. Protection: IP44
6. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
WZB Self-Priming Peripheral Pump
Performance Range
1. Max. Flow: 64m3/h
2. Max. Head: 55m
Application Limits
1. Suction head up to 8m
2. Liquid temperature up to +60℃
3. Ambient temperature up to +40℃
4. Max. Working pressure: 6bar
5. Voltage fluctuation should not exceed 10% f rated value.
6. pH: 6.5 to 8.5
Certificate
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, water tower water supply, living water supply, automatic irrigation system, small air conditioning system, various corollary equipment, etc.
Features
1. Self-priming pump
2. Built-in one-way valve
3. Add the impeller axial direction contact surface，stainless steel 304 inserts
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available On Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in well water lifting, water tower water supply, living water supply, automatic irrigation system, small air conditioning system, various corollary equipment, etc.
Features
1. Self-priming pump
2. Built-in one-way valve
3. Add the impeller axial direction contact surface，stainless steel 304 inserts
Motor
1. Single-Phase 220V/50Hz
2. Three-Phase 380V/50Hz
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available On Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
