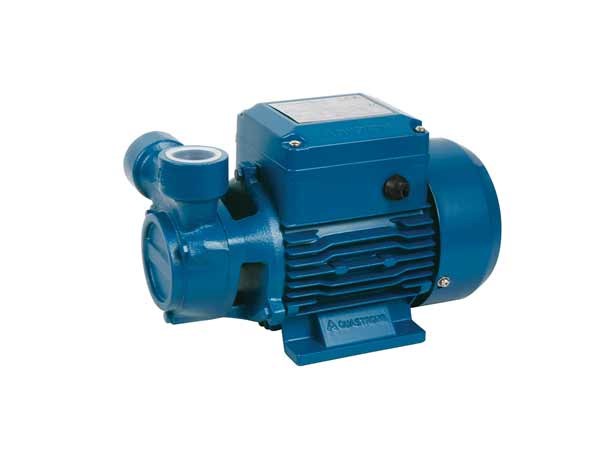

EK Peripheral Pumps
Back to products
Next product
EKS-1 Pumps

EQ Peripheral Pumps

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
Add to wishlist
Compare
Add to quote
SKU: AQU2388 Categories: , Tags: ,
Description

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.Thanks to their reliability, the fact that they are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

Pump                                                                Motor
·Brass impeller                                              ·Copper winding
·Anti-block system                                        ·Built-in thermal protector for single phase motor
·Electrophoresis for cast iron parts           ·Insulation class:F
·Stainless Steel fabricated shaft                 ·Protection class:IPX4
·Max.liquid temperature: +40℃                 ·Max.ambient temperature:+40℃
·Max.Suction:+8m

Model

eq

Related products

Compare
Close

PW-Z Self-Priming Peripheral Pump

Applications Fields 1. The self-priming peripheral pump is suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. 2. It’s widely used in household water supply, well water pumping, tap water pressure, water tower's supply, solar or hot water systems pressure, etc. Operating condition 1. Suction lift up to 8m 2. Liquid temperature ≤+90℃ 3. Environment temperature ≤ +40℃ 4. Max. working pressure: 5bar Features and advantages A self-priming peripheral pump for both hot and cold water. Advanced structure with lower noise. Intelligent control by both flow sensor and pressure sensor, which is convenient. Materials 1. Pump body: Cast iron with stainless steel insert 2. Motor casing: Aluminum 3. Impeller: Brass 4. Shaft: Welded by SUS304 and Cs45# 5. Mechanical seal: Ceramic/Graphite/NBR 6. Copper winding
Quick view
Compare
Close

JET-G1 Self-Priming Jet Pump

Performance Range 1. Max. Flow: 6m3/h 2. Max. Head: 48m Application Limits  1. Suction head up to 9m 2. Liquid temperature up to +40℃ 3. Ambient temperature up to +40℃ 4. Max. Working pressure: 6bar 5. Voltage fluctuation should not exceed 10% of rated value. 6. pH: 6.5 to 8.5 Certificate Applications Fields  1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. 2. Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc. Features 1. 304 stainless steel pressed tensile pump body & pump cover 2. Hydraulic optimization design, excellent performance 3. Nozzle, guide vane and the impeller PPO engineering plastics 4. Products are complete in specifications, meet drinking water standards Motor 1. Single-Phase 220V/50Hz 2. Three-Phase 380V/50Hz 3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running 4. Protection: IP44 5. Insulation: Class B Optional Available on Request 1. NSK bearing 2. Motor whose insulation class is F 3. Other voltage or frequency is 60Hz
Quick view
Compare
Close

3.5SE(m) 3.5’’ Deep Well Pump

Performance Range
Max. Flow: 7.2m3/h Max. Head: 169m Application Limits 1. Max. ambient temperature < 40℃; 2. Sand content (in mass fraction) up to 0.01%; 3. hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L; 4. pH 6.5 to 8.5; 5. Maximum: 70m below the static water table.Certificate Application Fields 1. Building/construction work/domestic water supply; 2. Irrigation and small water work; 3. Landscaping; 4. Water conservancy system; 5. Factory.Features 1. Edible oil filled motor, stable & reliable running with pressure regulating membrane; 2. Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector; 3. Available with cable with a motor plug, disassemble conveniently; 4. Available with pump casing with plug, integrated stage floating impellers; 5. Installation in 3.5" or larger boreholes;Optional Available On Request NO
Quick view
Compare
Close

NK(m) 5’’ Submersible Pump

Performance Range
Max. Flow: 5.4m3/h Max. Head: 88m
Application Limits
1. Max. ambient temperature < 40℃; 2. Sand content(in mass fraction)up to 0.01%; 3. hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L; 4. pH 6.5 to 8.5; 5. Maximum: 70m below the static water table.
Certificate Application Fields 1. Building/construction work/domestic water supply; 2. Irrigation and small water work; 3. Landscaping; 4. Water conservancy system; 5. Factory. Features 1. Single phase motor equipped with start box which is built in capacitor ¤t mode thermal protector, convenient for replacement; 2. Built-in motor, the suction pump body 3. Installation in 5" or larger boreholes. Optional Available On Request Impeller is available with stainless steel 304
Quick view
Compare
Close

JET Self-Priming Jet Pump

Performance Range 1. Max. Flow: 6m3/h 2. Max. Head: 80m Application Limits  1. Suction head up to 9m 2. Liquid temperature up to +40℃ 3. Ambient temperature up to +40℃ 4. Max. Working pressure: 5bar 5. Voltage fluctuation should not exceed 10% of rated value. 6. pH: 6.5 to 8.5 Certificate Applications Fields  1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. 2. Widely used in living water supply, water tower water supply, well water lifting, automatic irrigation system, various corollary equipment, etc. Features 1. The JET type self-priming pump 2. High suction, with short time 3. Different impeller material configuration Motor 1. Single-Phase 220V/50Hz 2. Three-Phase 380V/50Hz 3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running 4. Protection: IP44 5. Insulation: Class B Optional Available on Request 1. 304 stainless steel welding shaft 2. Electrophoretic pump body and connections 3. NSK bearing 4. Motor whose insulation class is F 5. Other voltage or frequency is 60Hz
Quick view
Compare
Close

QJD 4’’ Deep Well Pump

Performance Range
Max. Flow: 4.8m3/h Max. Head: 119m
Application Limits
1. Max. ambient temperature< 40℃; 2. Sand content (in mass fraction) up to 0.01%; 3. Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L; 4. pH 6.5 to 8.5; 5. Maximum: 20m below the static water table.
Certificate Application Fields 1. Building/construction work/domestic water supply; 2. Irrigation and small water work; 3. Landscaping; 4. Water conservancy system; 5. Factory. Features 1. Treble seal shield for excellent sand prevention; 2. High efficiency and lower power consumption; 3. Single phase motor with built in capacitor & thermal mode protector; 4. Pump sleeve with screw thread, single stage floating impellers; 5. Installation in 4" or larger boreholes; Optional Available On Request No
Quick view
Compare
Close

APS Intelligent Frequency Converter Circulation Pump

Performance Range 1. Max. Flow: 3.5m3/h 2. Max. Head: 6m Application Limits  1. Liquid temperature: 2℃~110℃ 2. Maximum ambient temperature +40℃ 3. Maximum system pressure 10bar 4. Protection level: IP44 5. Mains connection: 220V 50Hz/60Hz 6. Insulation class: F 7. Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water 8. Installation: the motor shaft must be kept in horizontal direction 9. pH: 6.5 to 8.5 Certificate Applications Fields  For domestic hot water system such as mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system and family hot, cold water pressurization circulation, etc. Features 1. "A" rated energy efficiency-lowest power consumption 2. Permanent magnet motor-intelligent frequency conversion control 3. Compact design, with control box integrated into the pump head 4. Proportional pressure mode(PP) 5. Constant pressure mode(CP) 6. Constant speed mode(S) 7. AUTO mode 8. Night-setback mode 9. Actual power display 10. Low noise, no leakage Optional Available on Request 1. Products can be customized according to customer's voltage and frequency 2. Brass pump body, enamel pump body, stainless steel pump body
Quick view
Compare
Close

QB Peripheral Pump

Performance Range 1. Max. Flow: 3.6m3/h 2. Max. Head: 60m Application Limits  1. Suction head up to 8m 2. Liquid temperature up to +40℃ 3. Ambient temperature up to +40℃ 4. Max. Working pressure: 6bar 5. Voltage fluctuation should not exceed 10% of rated value. 6. pH: 6.5 to 8.5 Certificate Applications Fields  1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. 2. Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc. Features 1. Small size, high pressure 2. Easy installation & maintain Motor 1. Single-Phase 220V/50Hz 2. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running 3. Protection: IP44 4. Insulation: Class B Optional Available On Request 1. 304 stainless steel welding shaft 2. Electrophoretic pump body and connections 3. Stainless steel insert 4. NSK bearing 5. Motor whose insulation class is F 6. Other voltage or frequency is 60Hz
Quick view
