Performance Curves

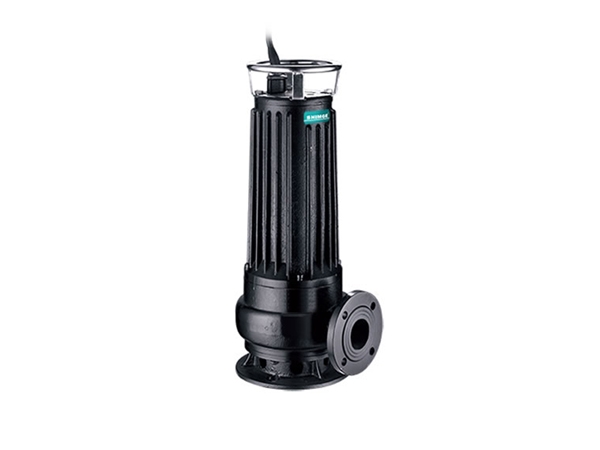

WQ(D)AS-CB Grinder Pump
Performance Range
Max. Flow: 123m3/h
Max. Head: 31m
Application Limits
1. Maximum liquid temperature +40℃
2. pH level from 4-10
3. Maximum liquid density 1.2×103kg/m3
4. Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC or 415VAC for three phase with the range from -10% to 10%.
5. Immersion depth from 0.5m-5m
Certificate
Application Fields
WQ(D)AS-CB series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. With a good capacity of anti-clogging and anti-winding, the cutter pump are especially applicable for pumping household wastewater and mixed fluid with insoluble solids content such as fibers, bags, belts, straw, cloth, paper, sand, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.
Features
1. Cutting impeller which is wear-resistant called: QT450-10, the pump body, motor bracket and the roof are all durable for cast iron material.
2. Stainless steel shaft extension, carbide double-side mechanical sealing.
3. Single phase with control box and the built-in thermal protector to protect the motor.
4. Stainless steel ring handle.
