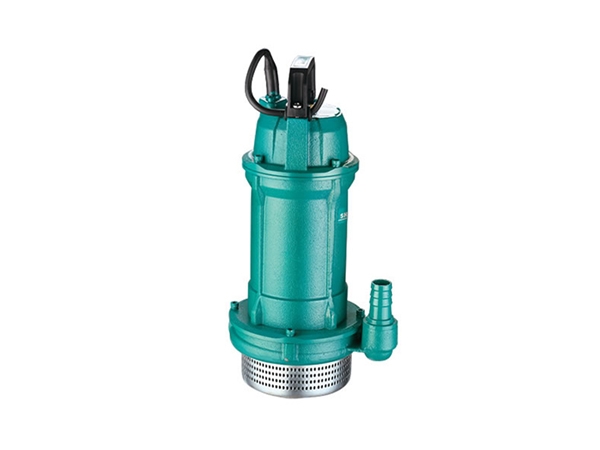

QDX-T Submersible Drainage Pump

Performance Range

Max. Flow: 44m3/h
Max. Head: 33m

Application Limits

1. Installing depth up to 5m
2. Liquid temperature up to +40℃
3. pH level from 6.5-8.5
4. Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm

Certificate

Application Fields

1. Suitable for transferring water without abrasive particles
2. Suitable for well water lifting, farm irrigation, garden irrigation and living water supply
3. Suitable for industrial water eliminating, construction water supply and drainage, breeding industry water supply and drainage, etc.

Features

1. New appearance design, high quality life
2. Anti-overloading motor design, not easy to burn machine
3. Lightweight design, easy to maintenance;
4. water from the bottom, extracting a lower water level;
5. Adopt PPOG20 plastic impeller, durable;
6. Stainless steel screws, easy to maintain;

Optional Available On Request

Other voltage or frequency is 60Hz

Add to wishlist
Compare
Add to quote
SKU: PUM8904 Categories: , , Tags: , , ,
Description

Performance Curves

5-5-submersible-drainage-pump-02

5-5-submersible-drainage-pump-03
