Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Features
Pump Motor
·Brass/Stainless steel impeller ·Copper winding
·Electrophoresis for cast iron parts ·Built-in thermal protector for single phase motor
·Stainless Steel fabricated shaft ·Insulation class:F
·Max.liquid temperature: +40℃ ·Protection class:IPX4
·Max.Suction:+8m ·Max.ambient temperature:+40℃
Model
Application Fields
1. Building/construction work/Domestic water supply;
2. Irrigation and small water work;
3. Landscaping;
4. Water conservancy system;
5. Factory.
Features
1. Edible oil filled motor, stable& reliable running with pressure regulating membrane;
2. Single phase motor equipped with start box which is built in capacitor ¤t mode thermal protector, convenient for replacement;
3. Pump sleeve with screw thread, single stage floating impellers;
4. Installation in 3" or larger boreholes.
Optional Available On Request
Oil chamber is available with Brass or SS304; Discharge chamber, Inlet parts are available with Casting or SS304.
Applications Fields
1. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
2. Widely used in vegetable greenhouse water supply, breeding industry water supply and drainage, water tower water supply, pipeline pressurization, various corollary equipment, etc.

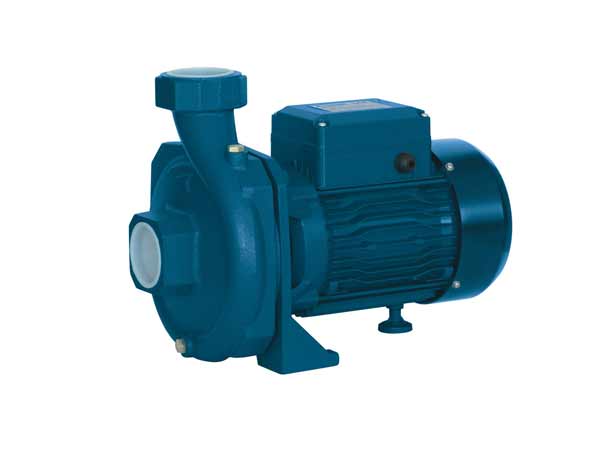

Features
1. Single suction centrifugal pump, with high efficiency
2. Copper impeller, stable performance
3. High head, small flow rate
Motor
1. Single-Phase 220V/50Hz
2. Mechanical seal: Ceramic/Graphite/NBR rubber
3. Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
4. Protection: IP44
5. Insulation: Class B
Optional Available on Request
1. 304 stainless steel welding shaft
2. Electrophoretic pump body and connections
3. NSK bearing
4. Motor whose insulation class is F
5. Other voltage or frequency is 60Hz
