EH Centrifuge Pumps

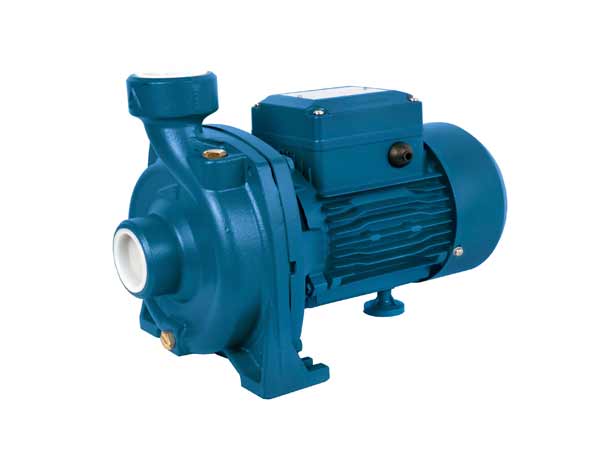

EG Centrifuge Pumps

Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
Add to wishlist
Compare
Add to quote
SKU: AQU2381 Categories: , Tags: ,
Description

Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging. As a result of these characteristics the EG series pumps are used specifically in industry and for transferring water from canals, rivers, reservoirs, tanks, etc.The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

Pump                                                             Motor
·Brass/Stainless steel impeller                  ·Copper winding
·Electrophoresis for cast iron parts          ·Built-in thermal protector for single phase motor
·Stainless Steel fabricated shaft                ·Insulation class:F
·Max.liquid temperature: +40℃                ·Protection class:IPX4
·Max.Suction:+8m                                       ·Max.ambient temperature:+40℃

Model

EGM
