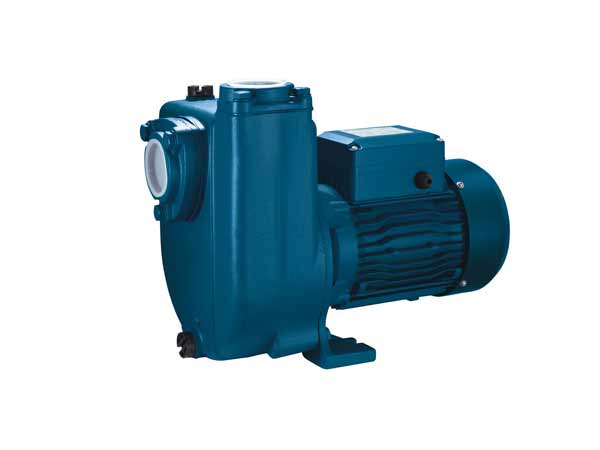

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Features
Pump Motor
·Brass/Stainless steel impeller ·Copper winding
·Electrophoresis for cast iron parts ·Built-in thermal protector for single phase motor
·Stainless Steel fabricated shaft ·Insulation class:F
·Max.liquid temperature: +40℃ ·Protection class:IPX4
·Max.Suction:+8m ·Max.ambient temperature:+40℃
Model
Application Fields
1. Building/construction work/Domestic water supply;
2. Irrigation and small water work;
3. Landscaping;
4. Water conservancy system;
5. Factory.
Features
1. Edible oil filled motor, stable& reliable running with pressure regulating membrane;
2. Single phase motor equipped with start box which is built in capacitor ¤t mode thermal protector, convenient for replacement;
3. Pump sleeve with screw thread, single stage floating impellers;
4. Installation in 3" or larger boreholes.
Optional Available On Request
Oil chamber is available with Brass or SS304; Discharge chamber, Inlet parts are available with Casting or SS304.
Applications Fields
For domestic hot water system such as mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system and family hot, cold water pressurization circulation, etc.
Features
1. "A" rated energy efficiency-lowest power consumption
2. Permanent magnet motor-intelligent frequency conversion control
3. Compact design, with control box integrated into the pump head
4. Proportional pressure mode(PP)
5. Constant pressure mode(CP)
6. Constant speed mode(S)
7. AUTO mode
8. Night-setback mode
9. Actual power display
10. Low noise, no leakage
Optional Available on Request
1. Products can be customized according to customer's voltage and frequency
2. Brass pump body, enamel pump body, stainless steel pump body
