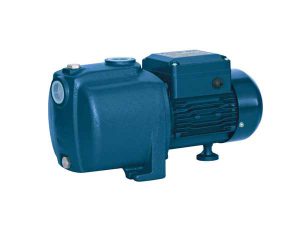

The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors.
Add to wishlist
Compare
Add to quote
SKU: AQU2374 Categories: , Tags: ,
Description

The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

Pump 　  　 　                                                         Motor 　
·Plastic impeller 　 　 　                                        ·Copper winding
·Electrophoresis for cast iron parts 　 　 　      ·Built-in thermal protector for single phase motor
·AISI 304 shaft 　                                                    ·Insulation class:F
·Max.liquid temperature: +40℃  　 　 　           ·Protection class:IPX4
·Max.Suction:+8m 　 　 　                                    ·Max.ambient temperature:+40℃

Model

ECM100S
