Performance Curve

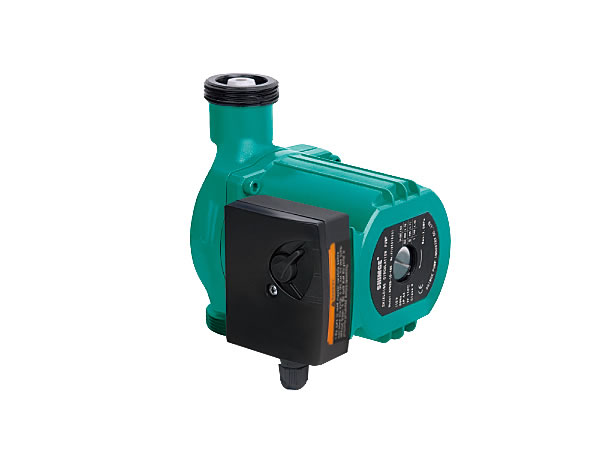

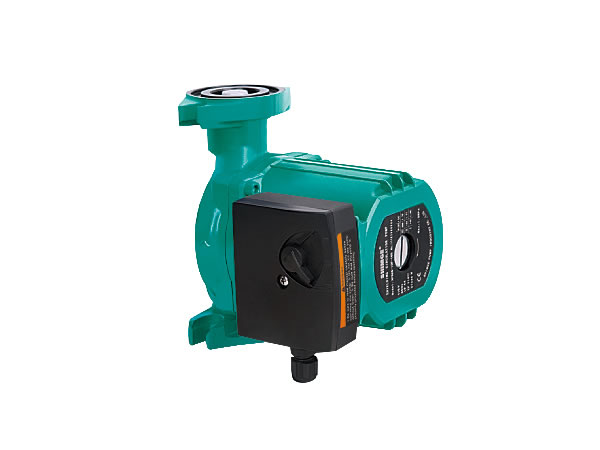

XPS26 Three Speed Circulation Pump
Performance Range
1. Max. Flow: 4.5m3/h
2. Max. Head: 8m
Application Limits
1. Liquid temperature: +2℃～+110℃
2. Maximum ambient temperature: +40℃
3. Maximum system pressure: 10bar
4. Protection level: IP44
5. Mains connection: 115V/60Hz
6. Insulation class: H
7. Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
8. Installation: the motor shaft must be kept in horizontal direction
9. PH: 6.5 to 8.5
Certificate
Applications Fields
XPS pumps are designed for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings are also suitable for use in hot-water service systems. Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.
Features
1. 3-speed adjustment
2. Low noise
3. No leakage
Optional Available on Request
Enamel pump body, stainless steel pump body
