Performance Curves

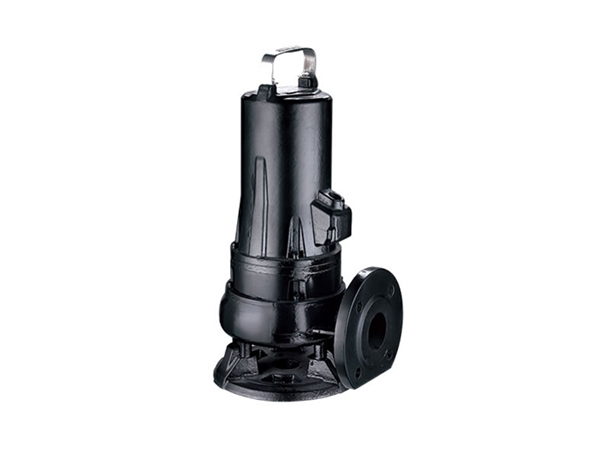

WQ(D)-H1 Submersible Sewage Pump
Performance Range
Max. Flow: 62m3/h
Max. Head: 29m
Application Limits
1. Ambient temperature: 0~40℃; maximum liquid temperature +40℃
2. pH level from 4-10
3. Maximum liquid density 1.2×103kg/m3
4. Power frequency is 50Hz.Nominal voltage is 220VAC for single phase and 380VACfor three phase with the range from -10% to 10%.
5. Immersion depth from 0.5m-5m
Certificate
Application Fields
WQ(D)-H1 series pumps are widely applied in industry, agriculture, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction.
Features
1. Insulation class: F.
2. The wear-resistant impeller of QT450-10 material.
3. Stainless steel shaft extension, carbide double-sides mechanical sealing.
4. Double channel impeller, good flow capacity, excellent hydraulic performance.
