ALTERNATOR:
Brands: Stamford, Leroy Somer, Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Keypower
THE PANEL IS PROVIDED WITH:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
MCB of suitable rating with overload and short-circuit protection
Optional with AMF control panel or with ATS (automatic transfer switch)
APPLICATIONS:
With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.
ANY QUESTION, PLEASE CONTACT US DIRECTLY.

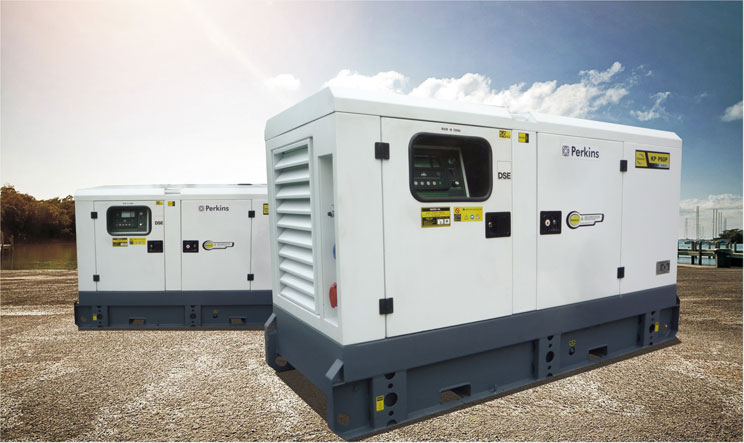

| Genset Model | 400/230V 3Phase 4 Wires 50Hz COSφ=0.8 | Parameters of Perkins Diesel Engine 1500rpm | |||||||
| Standby Power | Prime Power | Maximum Current (A) | Engine Model | Cyl. | Displacement(L) | Comsumption(Full Load) (L/h) | |||
| KVA | KW | KVA | KW | ||||||
| KP10 | 10 | 8 | 9 | 7 | 14 | 403A-11G1 | 3L | 1.1 | 2.6 |
| KP10 | 10 | 8 | 9 | 7 | 14 | 403D-11G | 3L | 1.1 | 2.6 |
| KP14 | 14 | 11 | 13 | 10 | 20 | 403A-15G1 | 3L | 1.5 | 3.67 |
| KP14 | 14 | 11 | 13 | 10 | 20 | 403D-15G | 3L | 1.5 | 3.67 |
| KP17 | 17 | 13 | 15 | 12 | 25 | 403A-15G2 | 3L | 1.5 | 4.1 |
| KP22 | 22 | 18 | 20 | 16 | 32 | 404A-22G1 | 4L | 2.2 | 5.3 |
| KP22 | 22 | 18 | 20 | 16 | 32 | 404D-22G | 4L | 2.2 | 5.4 |
| KP30 | 30 | 24 | 27 | 22 | 43 | 404D-22TG | 4L | 2.2 | 7.1 |
| KP33 | 33 | 26 | 30 | 24 | 48 | 1103A-33G | 3L | 3.3 | 7.1 |
| KP50 | 50 | 40 | 45 | 36 | 72 | 1103A-33TG1 | 3L | 3.3 | 10.7 |
| KP66 | 66 | 53 | 60 | 48 | 95 | 1103A-33TG2 | 3L | 3.3 | 13.9 |
| KP72 | 72 | 58 | 65 | 52 | 104 | 1104A-44TG1 | 4L | 4.4 | 14.8 |
| KP88 | 88 | 70 | 80 | 64 | 127 | 1104A-44TG2 | 4L | 4.4 | 18.7 |
| KP110 | 110 | 88 | 100 | 80 | 159 | 1104C-44TAG2 | 4L | 4.4 | 22.6 |
| KP150 | 150 | 120 | 135 | 108 | 217 | 1106A-70TG1 | 6L | 7 | 30.2 |
| KP165 | 165 | 132 | 150 | 120 | 238 | 1106A-70TAG2 | 6L | 7 | 32.2 |
| KP200 | 200 | 160 | 180 | 144 | 289 | 1106A-70TAG3 | 6L | 7 | 40.2 |
| KP220 | 220 | 176 | 200 | 160 | 318 | 1106A-70TAG4 | 6L | 7 | 44.7 |
| KP250 | 250 | 200 | 230 | 184 | 361 | 1506A-E88TAG2 | 6L | 8.8 | 50 |
| KP275 | 275 | 220 | 250 | 200 | 397 | 1506A-E88TAG3 | 6L | 8.8 | 56 |
| KP300 | 300 | 240 | 275 | 220 | 433 | 1506A-E88TAG4 | 6L | 8.8 | 60 |
| KP350 | 350 | 280 | 300 | 240 | 505 | 1506A-E88TAG5 | 6L | 8.8 | 65 |
| KP358 | 358 | 286 | 325 | 260 | 517 | 2206A-E13TAG2 | 6L | 12.5 | 71 |
| KP400 | 400 | 320 | 350 | 280 | 577 | 2206A-E13TAG2 | 6L | 12.5 | 71 |
| KP450 | 450 | 360 | 400 | 320 | 650 | 2206A-E13TAG3 | 6L | 12.5 | 81 |
| KP500 | 500 | 400 | 450 | 360 | 722 | 2506A-E15TAG1 | 6L | 15.2 | 95 |
| KP550 | 550 | 440 | 500 | 400 | 794 | 2506A-E15TAG2 | 6L | 15.2 | 100 |
| KP660 | 660 | 528 | 600 | 480 | 953 | 2806A-E18TAG1A | 6L | 18 | 123 |
| KP700 | 700 | 560 | 650 | 520 | 1010 | 2806A-E18TAG2 | 6L | 18 | 132 |
| KP825 | 825 | 660 | 750 | 600 | 1191 | 4006-23TAG2A | 6L | 22.9 | 157 |
| KP900 | 900 | 720 | 800 | 640 | 1299 | 4006-23TAG3A | 6L | 22.9 | 172 |
| KP1035 | 1035 | 828 | 940 | 752 | 1494 | 4008TAG2A | 8V | 30.6 | 220 |
| KP1100 | 1100 | 880 | 1000 | 800 | 1588 | 4008TAG2A | 8V | 30.6 | 220 |
| KP1385 | 1385 | 1108 | 1250 | 1000 | 1999 | 4012-46TWG2A | 12V | 45.4 | 259 |
| KP1500 | 1500 | 1200 | 1350 | 1080 | 2165 | 4012-46TWG3A | 12V | 45.4 | 283 |
| KP1600 | 1600 | 1280 | 1500 | 1200 | 2309 | 4012-46TAG2A | 12V | 45.8 | 301 |
| KP1600 | 1600 | 1280 | 1500 | 1200 | 2309 | 4012-46TWG4A | 12V | 45.8 | 316 |
| KP1815 | 1815 | 1452 | 1650 | 1320 | 2620 | 4012-46TAG3A | 12V | 45.8 | 370 |
| KP2000 | 2000 | 1600 | 1850 | 1480 | 2887 | 4016TAGlA | 16V | 61 | 383 |
| KP2250 | 2250 | 1800 | 2000 | 1600 | 3248 | 4016TAG2A | 16V | 61 | 434 |
| KP2500 | 2500 | 2000 | 2250 | 1800 | 3609 | 4016-61TRG3 | 16V | 61 | 473 |
