| Model | KP-5000SE | KP-5000SE-3 | KP-5000SE | KP-5000SE-3 |
| Ac frequency（Hz） | 50 | 50 | 60 | 60 |
| Phase | Single Phase | Three phase | Single Phase | Three phase |
| Type | Brushless,self-exciting,2-poles | Brushless,self-exciting,2-poles | ||
| Ac output voltage（V） | 100v-240v | 200v-450v | 110/220v-240v | 208/240v-380/460v |
| Cont.ac output(KW) | 4.5 | 4.5 | 5 | 5 |
| Max.ac output(KW) | 5 | 5 | 5.5 | 5.5 |
| Dc output(V/A) | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 |
| Insulation | F | F | F | F |
| Power factor(cos ) | 1 | 0.8 | 1 | 0.8 |
| Engine Model | KP186FAE | KP186FAE | KP186FAE | KP186FAE |
| Engine Character | Single-cylinder 4-stroke air-cooled injection diesel | Single-cylinder 4-stroke air-cooled injection diesel | ||
| Displacement(cc) | 418 | 418 | 518 | 518 |
| Engine Speed(rpm) | 3000 | 3000 | 3600 | 3600 |
| Starting system | recoil/electric | recoil/electric | recoil or recoil/electric | recoil or recoil/electric |
| Max.power output(hp) | 8 | 8 | 9 | 9 |
| Fuel tank capacity(L) | 15 | 15 | 15 | 15 |
| Contines work(h) | 10 | 10 | 9.5 | 9.5 |
| Operating noise level (at 7m) | 70 | 70 | 72 | 72 |
| Dim(1xwxh)(mm) | 940*520*740 | 940*520*740 | 940*520*740 | 940*520*740 |
| Net weight(kg) | 165 | 165 | 165 | 165 |

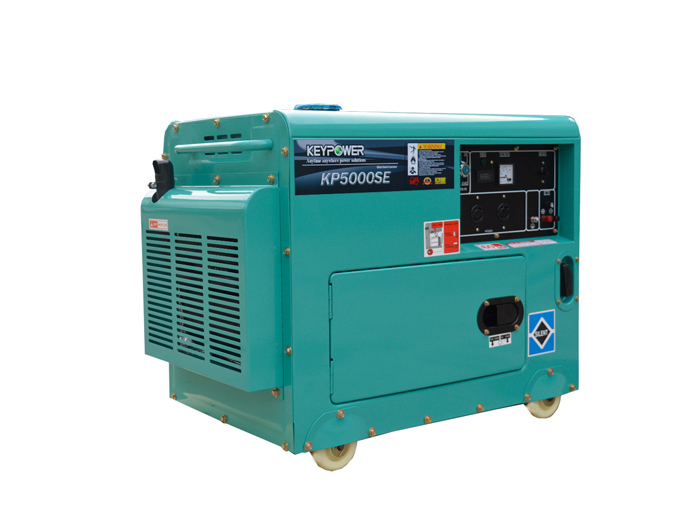

5000W Air-cooled Generator Set
5000W Air-cooled Generator Set
Description
