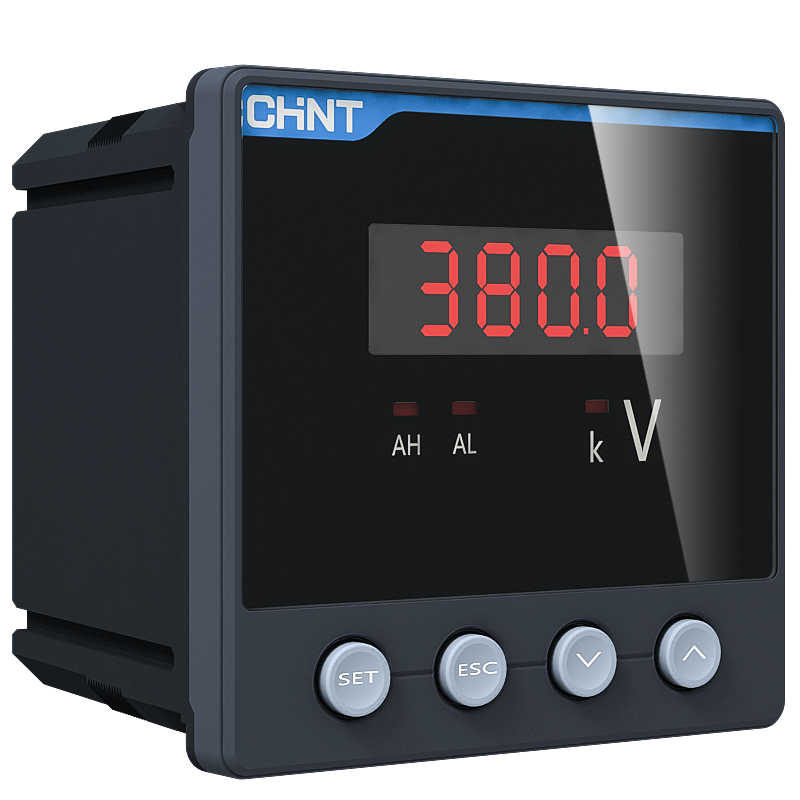

PA/PZ666- series Single Phase Digital Ammeter, Voltmeter
●Real-time measurement and indication for the current and voltage value of the power circuit
●Extensible analog output function, current range 4~20mA, 0~20 mA ,0~10 mA selectable
●Extensible relay switch output function, upper and lower alarm output can be realized.
●Extensible RS485 communication interface, according to MOD-BUS-RTU communication protocol, the baud rate can be set.
