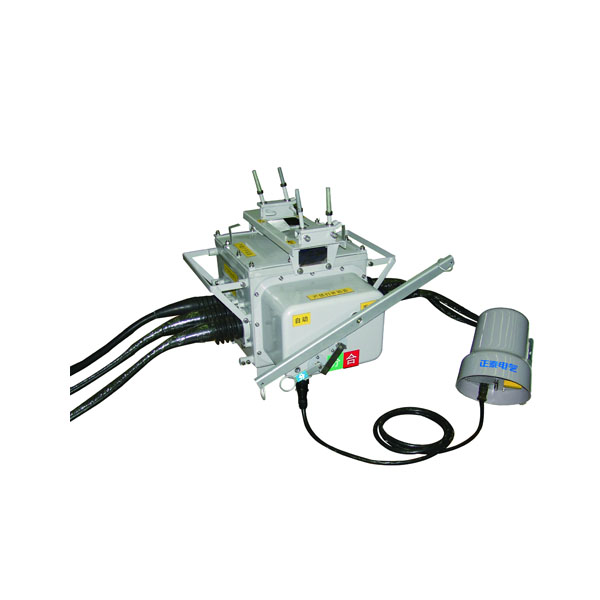

NFW1
Application: for making and breaking load current and short-circuit breaking current in 12kV AC50Hz power system.
Standards: IEC 60265-1
Features: 1.High breaking capacity.
2.Safe and reliable operation.
3.Maintenance-free.
4.Flexible installation.
5.With automation distribution interfac
