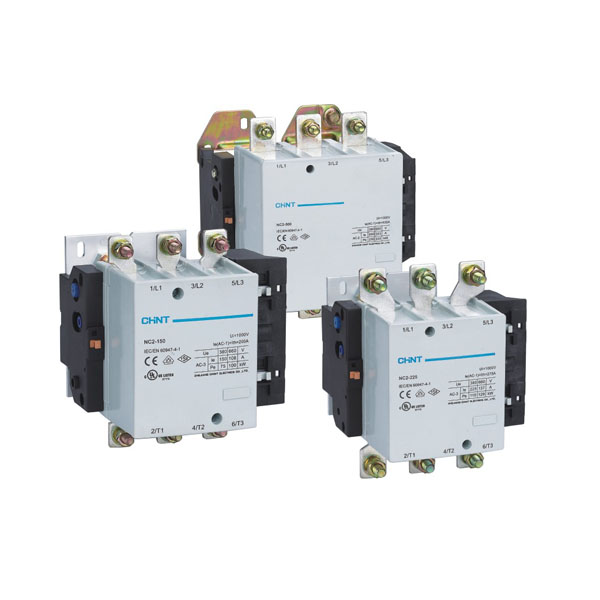

NC2 AC Contactor, 115~800A
1.1 Certificates: NC2-115~800 CE, VDE, UKrSEPRO, EAC, RCC, UL;
1.2 Electric ratings: AC50/60Hz, up to 690V, up to 800A;
1.3 Application: remote making & breaking circuits protect circuit from overload when assembling
with thermal over-load relay;
1.4 Ambient temperature: -5℃~+40℃;
1.5 Altitude: ≤2000m;
1.6 Mounting category: Ⅲ
1.7 Mounting conditions: inclination between the mounting plane and the vertical plane not exceed ±5°
1.8 Standard: IEC/EN 60947-4-1
