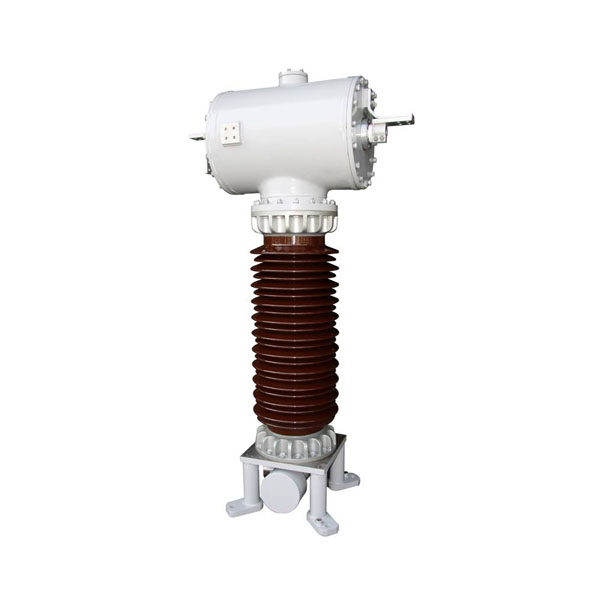

LVQB-220 SF6 Current Transformer
Application: for power, current measurement and relay protection
IEC 61869-1; IEC 61869-Standards: 3; IEC 61869-4
Parameters: up to 275kV, 50/60Hz
Features: High security and reliability in operation.
Economic and efficient to reduce network loss and working cost.
High short circuit strength and insulating strength.
Low temperature rise. Low noise.
Customized transformers are available on your requirement.
Competitive short delivery time.
