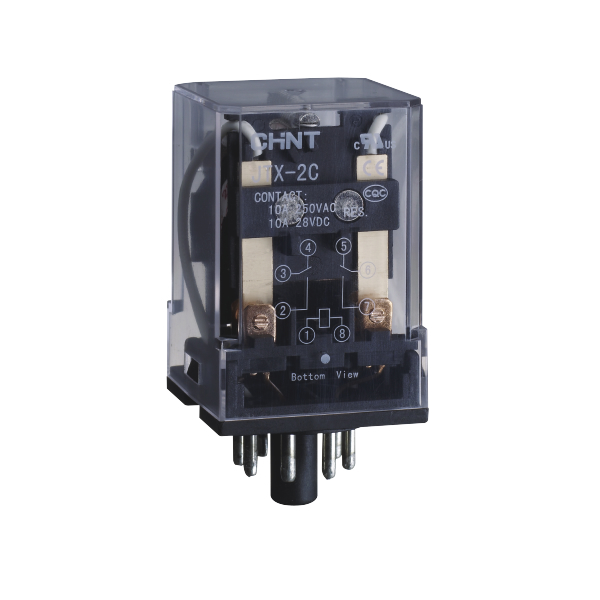

JTX Miniature Power Relay
1. 10A switching current
2. Various sockets available
3. Wide range of coil ratings
4. Certificate: UL, CE
