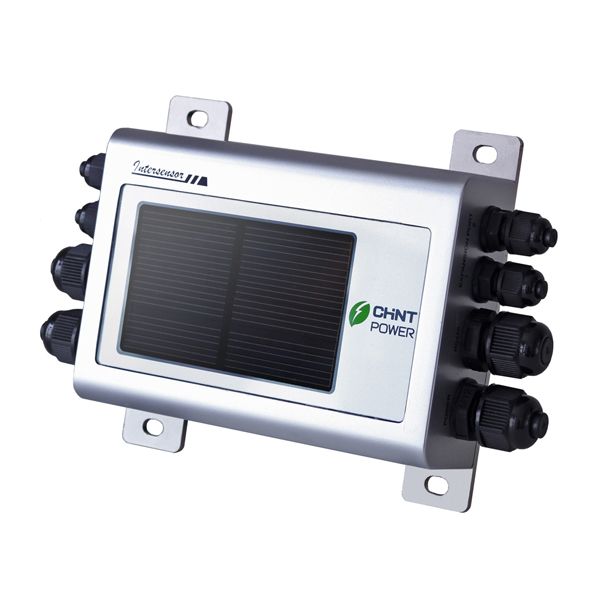

Intersensor
Intersensor real-time monitors environmental data including irradiance, ambient temperature, PV module temperature through various sensors. With optional sensors, such as ambient temperature sensor, wind speed sensor, and wind direction sensor more flexibility solution are achieved.
Intersensor communicates via specific protocol with Chint Power data logger. Wholly system provides actual operating data analysis for a running PV module.
